Description
Description

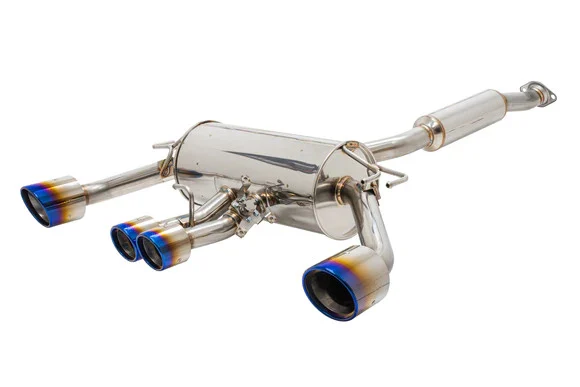

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.
PRODUCT FEATURES:
– High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
– Matched and manufactured for select chassis
– Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
– Made in Japan
| Bolt-On | Yes ✅ |
|---|---|
| Part Number | 164-KT23 : Titanium Tips 164AKT23 : Stainless Steel Tips |
| Year | 2023+ |
| Make | Toyota |
| Model | GR Corolla |
| Body Style | 5-Door Hatchback |
| Engine | G16E-GTS |
| Chassis | MZEAZ12 |
| Exhaust Type | N1 Evolution Extreme Muffler (N1-X) |
| Piping Diameter | 70mm – 60.5mm (Outer Left/Right) x 2 Piping 70mm – 50.8mm (Center Dual) x 2 Piping |
| Tip Diameter | Two Center Dual Tips – 93mm Two Outer Tips – 123mm |
| Pieces | 2 |
| Exhaust Tip Style | – Titanium Round- Dual wall rolled, Angle cut (Riveted) – Stainless Steel Round- Dual wall rolled, Angle cut (Riveted) |
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Tip Material | – TP270 Grade – Titanium (Heat Treated Gradient Tips) – SUS304 Stainless Steel – Polished |
| Special Notes | Integrated Valved compatible with Factory OE Electronic Module |
