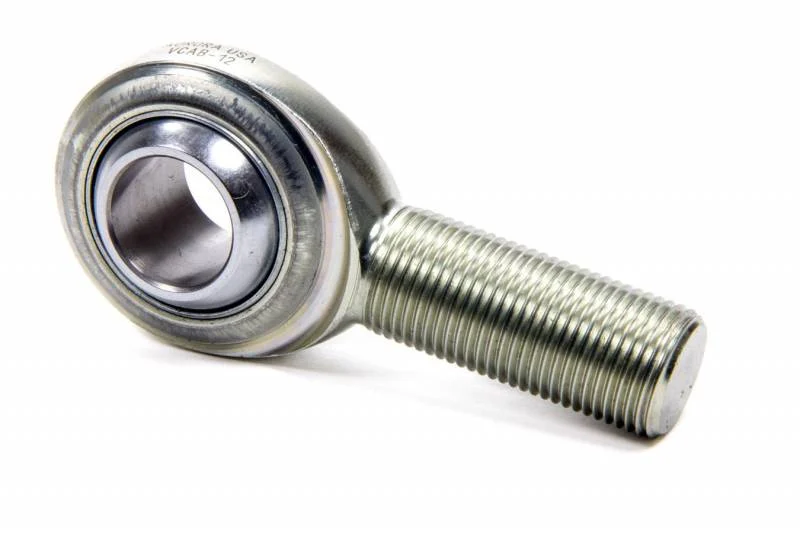

Aurora Bearing Rod End - Replacement for PCML12T Bearing GKtech R32 / Z32 FUCA

Aurora Bearing Rod End – Replacement for PCML12T Bearing GKtech R32 / Z32 FUCA

Original price was: $36.90.Current price is: $11.44.

Description This is a replacement bearing for PCML12TE.– GKTech Toe Arms, Traction Arms, Rear upper control arms– GKTech S-chassis V2 Adj Rear LCA.– GKTech S-chassis V2 High Clearance FLCA.– GKTech R32 GTR FUCA. The FUCA uses One Reverse (VCAM-12) and 2 Left hand thread. Body – Alloy steel, heat treated, protective coated for corrosion resistance.…

SKU: VCAB-12
Category:
Tags:

Description

Description

This is a replacement bearing for PCML12TE.
– GKTech Toe Arms, Traction Arms, Rear upper control arms
– GKTech S-chassis V2 Adj Rear LCA.
– GKTech S-chassis V2 High Clearance FLCA.
– GKTech R32 GTR FUCA. The FUCA uses One Reverse (VCAM-12) and 2 Left hand thread.

  • Body – Alloy steel, heat treated, protective coated for corrosion resistance.
  • Ball – Alloy steel, heat treated, hard chrome plated.
  • Bushing –Steel backed, PTFE composite.

*Sold individually

Specifications

Thread Type

 Left Hand

Thread Configuration

 Male

B – Ball Bore

 .7500 in

W – Ball Width

 .875 in

H – Head Width

 .593 in

A – Base to Center

 2.875 in

D – Head Diameter

 1.750 in

Ball Diameter

 1.250 in

C – Thread Length

 1.750 in

Thread Size

 3/4-16

Thread Class

 UNF-3A-LH

a – Misalignment Angle Clevis Mounted

 20 º

Ultimate Radial Static Load Capacity

 21,150 lbs

Approximate Brg. Weight

0.57 lb

Options

 Stud
