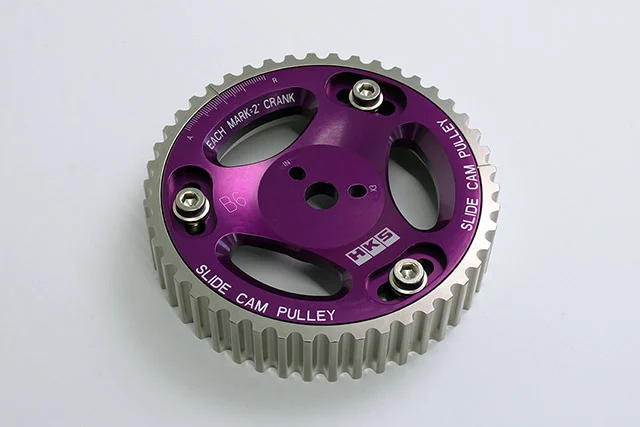

HKS CAM – PULLEY FOR MAZDA B6/BP engine

Description

Features

• “SLIDE CAM PULLEY” for the “B6-ZE” and “BP-ZE” engines used in highly popular vehicles such as the “NA” and “NB” Mazda MX-5/Miata/Roadster.
• Both the material and shape have been designed with a focus on weight reduction.
• Ultra-lightweight duralumin material (A2014) is used as the base material.
• The shape of the product has also been reconsidered and improved from the previous series.
• The weight is reduced by about 7% from “0.350kg” to “0.327kg” of the predecessor product.
• Surface of gear is plated with nickel to improve durability.
• Designed to withstand possible abrasion caused by foreign objects.
• It is also suitable for use with our reinforced timing belt, “HKS FINE TUNE TIMING BELT”, available on the market now.
• Recommended for users who thoroughly enjoy sports driving.
• Various engine specifications can be satisfied by the angle adjustment mechanism.
• (One scale on the pulley indicates a crank angle of 2°.
• To prevent adjustment errors, A (Advance) and R (Retard) are engraved for visual confirmation.
• Adjustable angle from -20° to 20°.
