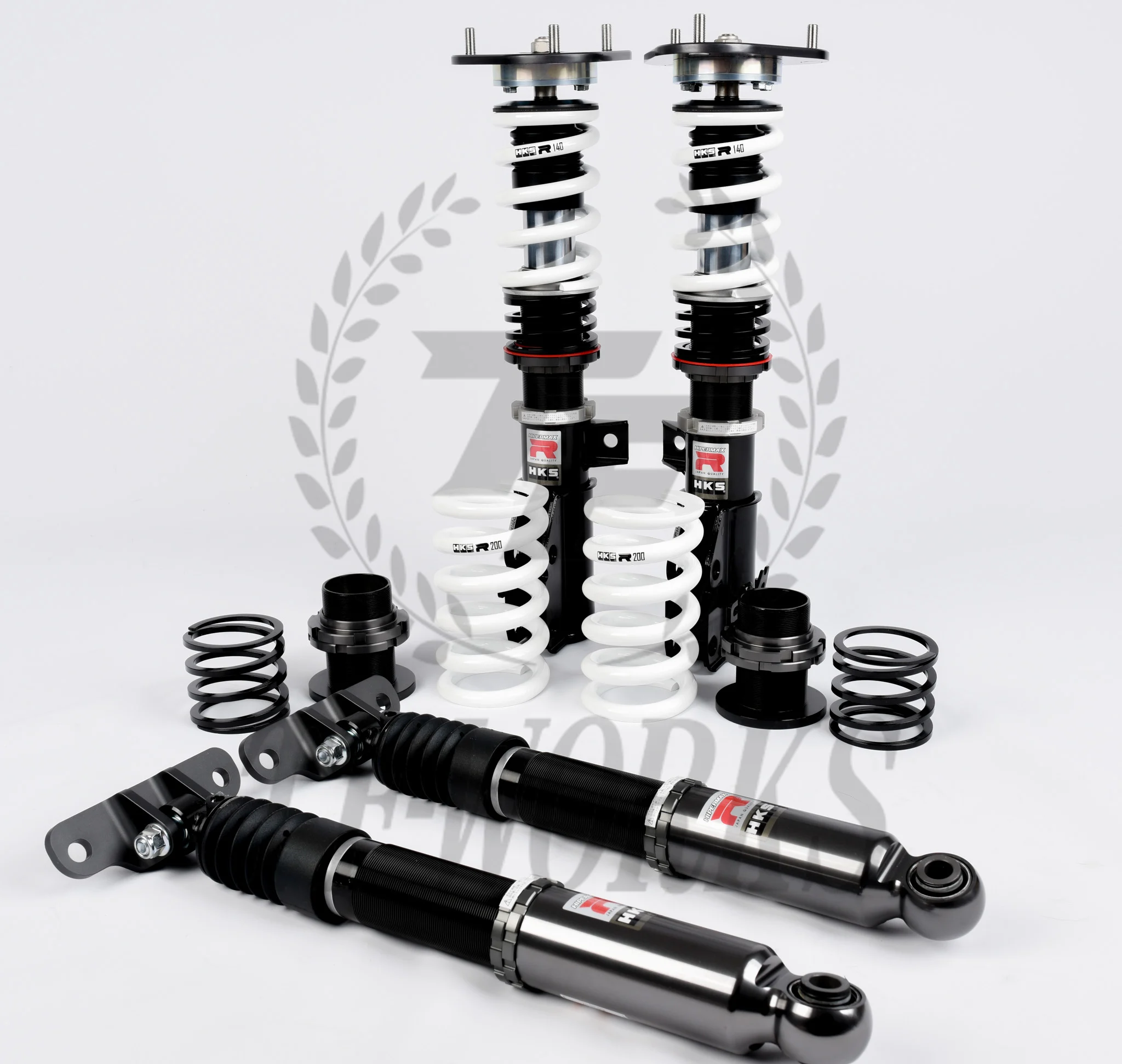

HKS Hipermax R Coilovers for GR Corolla (hks80310-AT007)
【Features】
– Introduction of HIPREMAX R, designed for circuit driving with high-grip tires.
– Features front camber adjustment mechanism adjustable up to approximately 4 degrees.
– Convenient camber adjustment ( Camber Plates ) accessible from the tire house side despite the deep position of
the upper part in the engine compartment.
– Rear damping force adjustment achievable without removing shock absorbers.
– Testing conducted with YOKOHAMA ADVAN A052 (265/35R18) tires.
– Recommended damping dial settings for Fuji Speedway: 10 clicks for the front, 13 clicks for the
rear.
– Adjustment tip: To avoid understeer, adjust the rear towards toe-out direction for improved
agility.
– Versatile performance: Suitable for both track driving and street use.
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 137 ( 14.0 ) | 196 ( 20.0 ) |
| Free height (mm) | 150 | 170 |
| Spring type | Straight | Straight |
| Recommended range to change spring rate N/mm(kgf/mm) | ±20 ( 2 ) | ±20 ( 2 ) |
