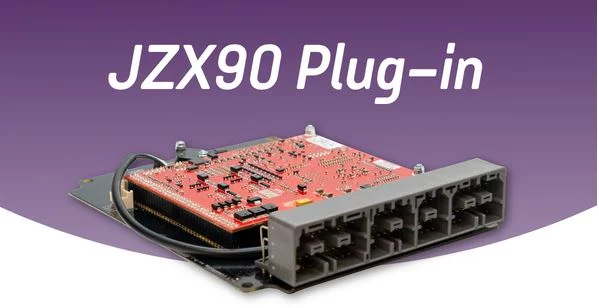

Name: Link ECU JZX90 Plug &amp; Play ECU
SKU: 235-4000
Availability: InStock

Description

Link Part Number: 235-4000

Suitable Applications (Manual Transmission): Toyota JZX90/JZZ30 with 1JZ-GTE (non-VVTi) Engine

Models: Toyota Chaser / Cresta / Mark II Tourer V / Roulant G (JZX90) / Soarer (JZZ30)

Please check your connector matches the header in the listed photo before purchasing.
This ECU works for manual transmissions only.
ECU includes an onboard 7 bar MAP sensor.
Most factory features are supported (Factory Traction Control not supported)
Check the features tab for I/O expansion options

Key Features of all G4X LinkECU Plug-in ECUs:

All Link G4X Plug-in ECUs come with the below features as standard:

Plug and Play – A Direct Replacement for the Factory ECU
All advanced software features enabled – Cruise Control, Anti Lag, Launch Control, Traction Control, Rolling Anti-lag, Drag Racing Power Management, Motorsport Gear Shift Control, Auto mode Closed Loop Lambda with Long term fuel trim (some of these features will need supporting hardware)
3 Axis Accelerometer onboard
Advanced Modelled Fuel equation with flex fuel capability, or a more basic “Traditional” equation is available.
Exceptional adaptive knock control or traditional threshold-based knock control.
Live user configurable math channels running in ECU
512MB of Internal Data Logging Memory, logged channels and frequency independently configurable, up to 1000Hz per channel.
Very flexible user configurable CAN bus inputs and outputs. Most 3rd party CAN bus devices supported.
CAN Keypad support.
Flexible engine protection limiters.
PC Link software – Tuning, display and powerful log analysis all in one package.
