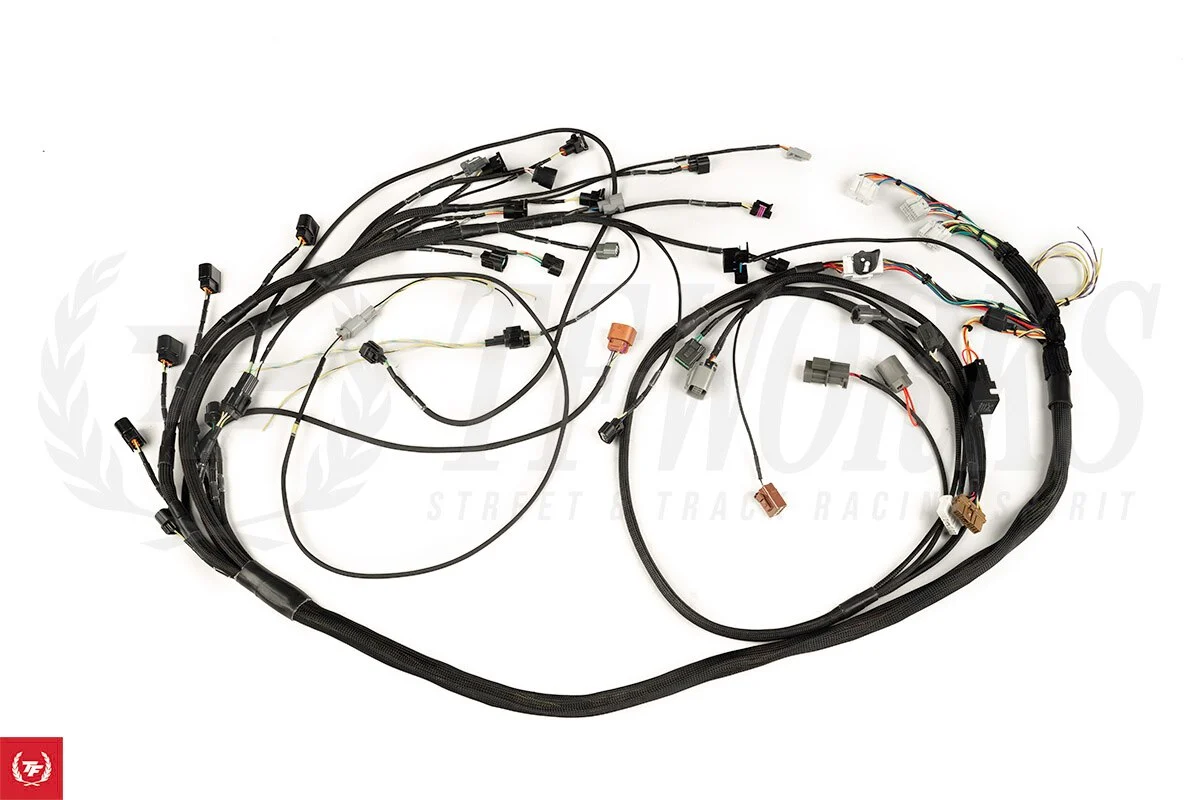

RWD Honda K-Series Kswap Clubsport Plug and Play Harness for Nissan 350Z

Description

PRODUCT DESCRIPTION

Our Honda K-Series Swap harness is designed to make the 2.0L and 2.4L K-Series engines swap into a RWD platform easily – plug and play!

This harness is specifically engineered for a USDM LHD Z33 350z (2003-2006) with the K-Series Honda/Acura K20 or K24 engine swap. It was developed in house on an actual K-Series engine to ensure a perfect fit to all engine connections.

Finally – fully functional tach and engine temp gauges, plus zero fault lights for traction control or stability control. Wiring Specialties has developed the CANBUS converter device to allow full gauge functionality, fan control and all of this in a plug and play package. No CORE needed, Plug and Play, startup guaranteed.

Currently this harness is only offered with the OEM/Plug-in ECUs.

**Please use Images below to specify details of your harness.

Select Fuel Injector Connector Type: ****************

• EV14 / EV6 / Injector Dynamics ID1000 / ID1300 / IDX

• EV1 Injectors (OBDI)

• Injector Dynamics ID2000

• Denso/Power Enterprise Injectors


Intake Air Temp IAT Sensor Connector Type (Optional, Only If Using IAT Sensor): *

• Not Using An IAT Sensor
• DTM Deutsch Style IAT Connector (AEM, Haltech)
• GM Style IAT Connector (AEM, Haltech)

Idle Air Control Valve (IACV) Option: *************

• Using K-Series Honda Idle Valve
• No Idle Valve


TPS Type: ****************

• Using K-Series RSX TPS

• Using B-Series TPS – ROUND Connector


MAP Sensor Type: **************

• Using K-Series MAP Sensor
• Using B-Series MAP Sensor – ROUND Connector


Crank Sensor Type: ****************

• Using K20 RSX Crank Sensor

• Using K24 Element, Accord Etc Crank Sensor


Knock Sensor Type: **************

• Using K20 Knock Sensor

• Using K24 Knock Sensor


Transmission Option: ************

• Using Nissan Z33 350Z CD009 Trans – No Speed Sensor

• Using BMW ZF Series 5-Speed Manual Transmission – No Speed Sensor

• Using BMW ZF Series 6-Speed Manual Transmission – No Speed Sensor

• Using BMW Getrag Manual Transmission – No Speed Sensor

• Using Honda S2000 Manual Transmission – No Speed Sensor


Project Car Factory / Original Transmission Setup: ***********

• Always A Manual (Factory Manual Trans)

• Auto To Manual Swap (Factory Auto Trans)

***Off road use only***
