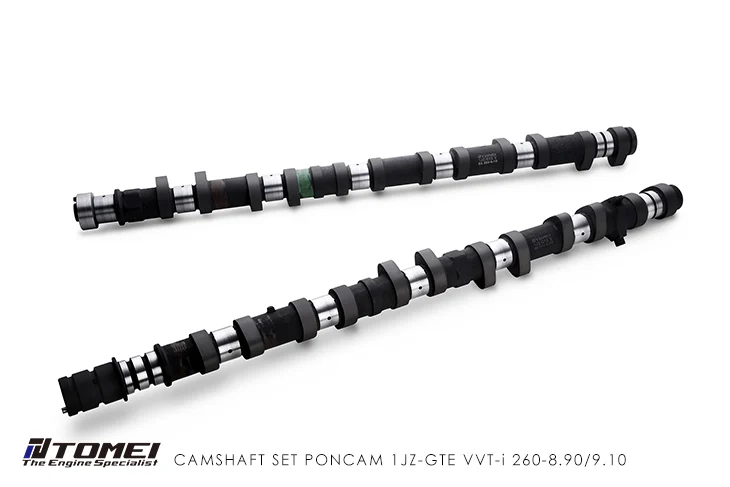

Tomei - 1JZ-GTE VVT-i 260° Camshaft Set

Tomei – 1JZ-GTE VVT-i 260° Camshaft Set

Original price was: $1,008.00.Current price is: $211.68.

Description DURATION(°) LIFT(mm) EACH SET PART No. MSRP(USD) PART No. MSRP(USD) 260 8.90 IN TA301C-TY04A $490.00 TA301A-TY04A $930.00 9.10 EX TA301E-TY04A $440.00 Application IN/EX Duration（°） Maxvalvelift（mm） Maxcamlift（mm) Coldvalveclearance（mm）［±0.01］ ValvetimingcenterLine(° ) Stockvalvespringcompatible Stockvalveliftercompatible 1JZ-GTEVVT-i IN 260 8.70 8.90 0.20 119 ✓ ✓ EX 8.80 9.10 0.30 112 ‘‘VALC’ profile features- Velocity, Acceleration, Lift, Control ■Optimized ‘velocity’…

SKU: TA301A-TY04At
Category:
Tags:

Description

Description

DURATION
(°)		 LIFT
(mm)		 EACH
 SET
PART No. MSRP(USD) PART No. MSRP(USD)
260 8.90 IN TA301C-TY04A $490.00 TA301A-TY04A $930.00
9.10 EX TA301E-TY04A $440.00
Application IN/
EX		 Duration
（°）		 Max
valve
lift
（mm）		 Max
cam
lift
（mm)		 Cold
valve
clearance
（mm）
［±0.01］		 Valve
timing
center
Line
(° )		 Stock
valve
spring
compatible		 Stock
valve
lifter
compatible
1JZ-GTE
VVT-i		 IN 260 8.70 8.90 0.20 119 ✓ ✓
EX 8.80 9.10 0.30 112
‘‘VALC’ profile features- Velocity, Acceleration, Lift, Control
■Optimized ‘velocity’ and ‘acceleration’.
■Designed for high power setups.
■Optimizes engine performance.
■Higher lift than other profiles of the duration.
■Reduced stress/wear on the valve train.
The VALC profile allows the valves to open faster and for longer. This translates to faster lift and increased area under the ‘lift curve’ (see fig. ①)
which in turn generates more power. (Greater area under the ‘lift curve’ = greater air intake)
①
・CAM ACCELERATION：LOW
・LIFT：LOW
・AIR INTAKE：LOW		 ・CAM ACCELERATION：HIGH
・LIFT：HIGH
・AIR INTAKE：HIGH
Unlike the valve opening, the VALC profile ensures that the valves close at a slower rate, helping to prevent common valve train related issues.
With a conventional direct-acting valve train, the maximum lift is usually determined by the size/diameter of the valve lifter. Selecting a high-lift camshaft without taking this into consideration often results in the camshaft lobes travelling beyond the surface of the valve lifter. This causes the lobe to make contact with the edge of the lifter, damaging both components over time. （see fig. ②）
Therefore, the ideal performance orientated high-lift camshaft needs to have a profile that maximizes lobe travel on the lifter without exceeding the outer edge.
VALC profile camshafts have achieved this ideal by deliberately reducing the maximum cam velocity to limit lobe travel on the lifter surface. （Maximum cam velocity = lobe travel distance on lifter)
②
High lift profile without taking lifter size/radius into account.
Compared to standard profile camshafts of the same lift, VALC profile camshafts are able to then then off-set the difference for even greater lift/performance gains.
Conventional profile based on lifter size/radius.
‘VALC’ profile.
”VALC’ profile + additional lift.
Lift comparison between a conventional profile and ‘VALC’ profile.
Conventional profile
‘VALC’ profile
‘VALC’ profile + additional lift.
PRECISION MACHINING
LOBE HEIGHT (INTAKE)
Machining each lobe to the strictest tolerances allows for smoother and more precise adjustments in valve clearances.
Based on: 12.50mm max lift, Φ32 base circle
SPEC. 44.900mm
ACTUAL (avg.) 44.904mm
DIFFERENCE (avg.) 0.004mm
DIFFERENCE (%) 0.008%
The greater this ‘difference’, the more shims and time required to adjust the valve clearance.
PHASE ANGLE
Lobe nose interrelationship (front view)
Strict phase angle tolerances minimizes the risk of valve timing issues and ensures each valve opens and closes precisely.
SPEC. See above
DIFFERENCE (avg.) 0°2′38.4″(0.044°)
DIFFERENCE (%) 0.073%
Our research showed that some camshafts from other manufacturers had more than 5 degrees difference in the phase angle! This makes it near impossible to achieve the correct valve timing.
