Description

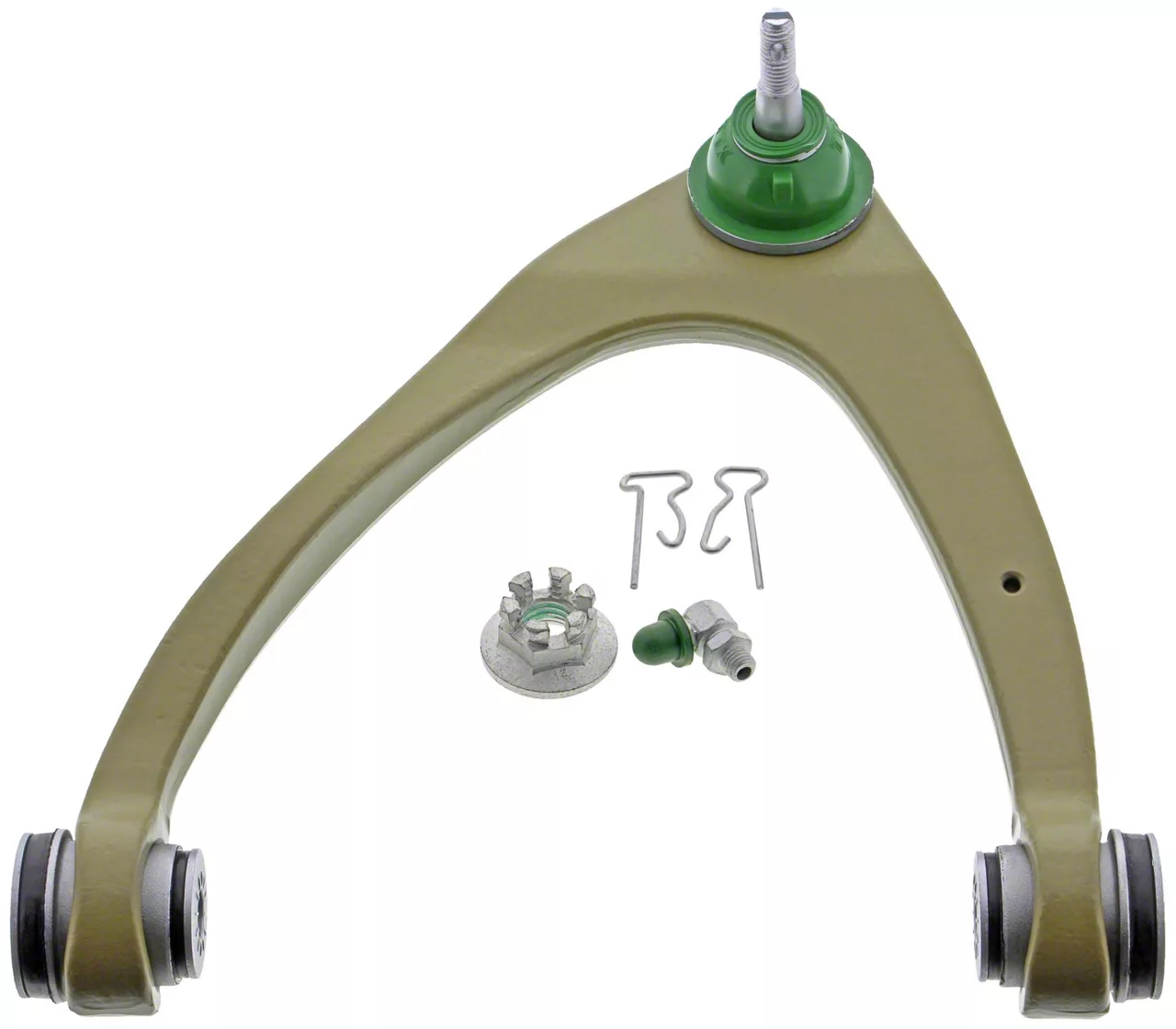

Engineered Durability. The TTX Front Upper Control Arm and Ball Joint Assembly; Driver Side is designed to provide exceptional strength and longevity for high-usage vehicles. This assembly replaces worn or damaged front upper control arms and ball joints, ensuring precise steering and suspension performance. It is crucial for maintaining vehicle safety, handling stability, and overall road performance under demanding conditions.
Construction and Appearance. Constructed from forged steel with a reinforced ball joint head, this control arm features a thicker cross section for added durability. The assembly incorporates patented sintered metal bearings and a patented sealing ring that permanently locks the neoprene dust boot onto the ball joint housing to protect against contaminants. It is finished with a corrosion-resistant Repel-TEK surface treatment and contains upgraded rubber bushings with knurling to secure the bushing to the sub-frame, with all components coated in a durable gold finish.
Installation. Installation is designed to be straightforward with no drilling required thanks to part-specific slotted castle nuts and easy snap cotter pins included. The assembly features a 90-degree SAE grease fitting to simplify servicing, making it suitable for professional mechanics and skilled automotive enthusiasts alike.
Application. This part fits 2007 to 2016 Chevrolet Silverado 1500 models equipped with a cast iron arm, excluding the 2013 model year and mid-2014 through 2016 model years for both 4WD and RWD configurations where the cast iron arm is specified.
CA Residents: WARNING: Cancer and Reproductive Harm
- Maximum Toughness With Patented Sintered Bearings
- Locks Out Contaminants With Patented Sealing Ring That Permanently Locks Boot Onto Ball Joint Housing
- Stronger Build Featuring Forged Steel Control Arm With Reinforced Ball Joint Head And Thicker Cross Section
- Quick And Easy Installation Using Part Specific Slotted Castle Nut And Easy Snap Cotter Pin
- Simple To Service With 90 Degree SAE Grease Fitting Included
- The Ultimate High-Performance Design Incorporates Upgraded Rubber Bushings With Knurling
- Larger Sphere Design Optimizes Performance With Application-Specific Ball Stud System
- Stronger Bond Maintained With Pre-Applied Nylok Thread Adhesive
- Longer Service Life Achieved Through Repel-TEK Surface Treatment To Prevent Rust Build-Up
- Ball Joint Included
- Bearing Material Made Of Sintered Metal
- Pre-Greased And Greaseable
- Grease Fitting Included
- Non-Adjustable
- Steel Control Arm Material
- Bushings Made Of Rubber
- Threaded Ball Joint Stud Type
- Ball Joint Thread Size M12 – 1.75
- Includes Mounting Hardware, Castle Nut, Cotter Pin, And Dust Boot
- Neoprene Dust Boot Material
- Fits 07-16 Silverado 1500 With Cast Iron Arm Except For Model Years 2013 And Mid 2014 To 2016 For Both 4WD And RWD Configurations
